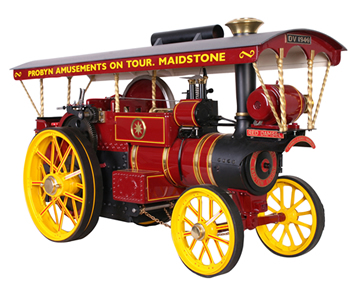

Maxitrak 1" scale Burrell showman's engine

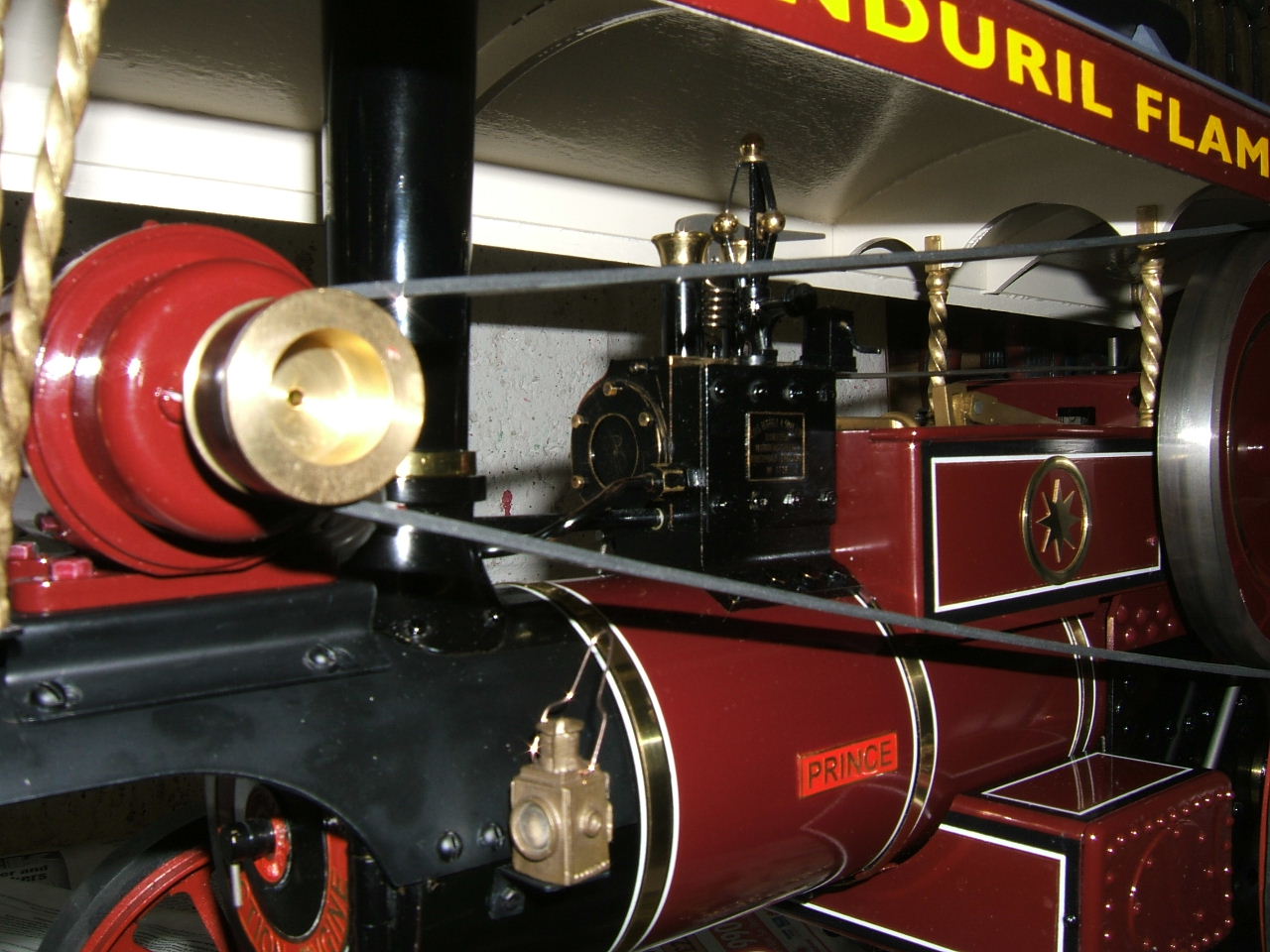

The Showmans Engine is considered by many to be the ultimate form of the traction engine. It is a specialised road haulage engine with modifications to make it suitable for Showmans use. There is a large dynamo mounted on an extension to the smokebox, which is belt driven from the flywheel. An extended canopy covers the length of the engine supported by traditional brass barley twist staunchions, with the brass capped chimney passing through. An extension to the chimney is usually mounted on the roof, to be used for extra draught, necessary when working stationary. added decoration includes brass stars to the motion covers and belly tank, extra brass boiler bands. Optional signwriting, lining and canopy lighting add the finishing touch. This fully detailed model captures the splendor of these impressive engines.
1:12 scale Burrell Road Locomotive
Boiler. Pressure 60 psi, gas fired (coal fired poa)
Cylinder. 7/8" Bore. 7/8" Stroke.
Stephensons valve gear

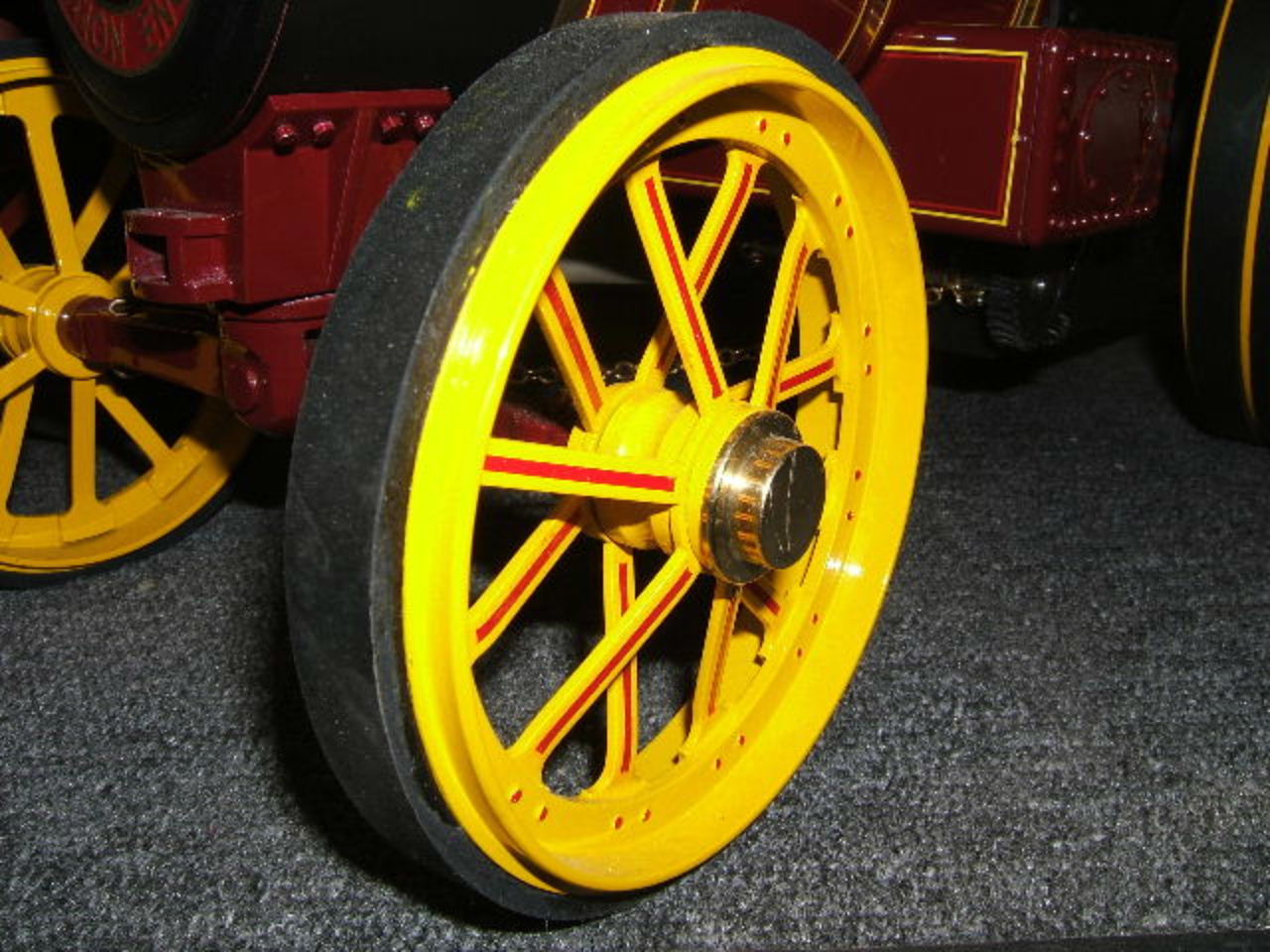

Wheels front 4 1/8" 105mm dia , rear 6 3/4" 171mm dia
Wheelbase 11 7/8" 302mm
Screw actuated brake
Length 21" 534mm
Width 8 1/4" 210mm
Height 12 1/2" 318mm
Weight 13kg
rtr £3825
painted kit £ 3215
Canopy lighting £54
Canopy lettering £42
Radio control £205
3 type A lamps £35
Scale hosepipe £17
Scale bucket £15
Scale shovel £15
Display case kit £60
youtube clip
